Atlas Series "All Glass" Door Hinge

PART # BH-358BN

$460.10 USD

PART # BH-358BN

The Atlas Series "All-Glass" Door Hinges are ideal for new or retrofit interior 'all-glass' doors where a floor or overhead closer in not an option. The solid brass construction and stainless steel components make the Atlas Series "All-Glass" Door Hinge a natural for sauna or steam room applications, or any location that may involve excess moisture. This innovative Hinge gives you the better of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors weighing up to 140 pounds (63.5 kilograms) with a maximum width of 39 inches (1000 millimeters). Do not exceed two hinges per door.

Sold By: Each

Adjustable: Yes

Back Plate: Full

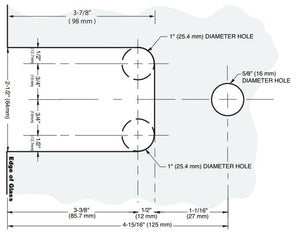

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

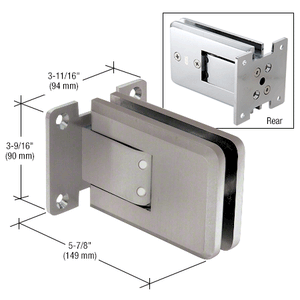

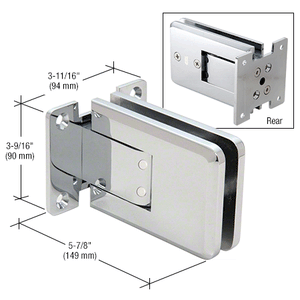

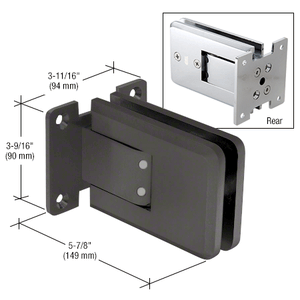

Height: 3-9/16 in. (90 mm)

Material: Brass

Maximum Door Weight: 140 Lbs.

Maximum Door Width: 39 in. (991 mm)

Mounting Type: Wall Mount

Width: 5-7/8 in. (149 mm)



$460.10 USD
Material
Glass Thickness
Finish
In stock

The Atlas Series "All-Glass" Door Hinges are ideal for new or retrofit interior 'all-glass' doors where a floor or overhead closer in not an option. The solid brass construction and stainless steel components make the Atlas Series "All-Glass" Door Hinge a natural for sauna or steam room applications, or any location that may involve excess moisture. This innovative Hinge gives you the better of two worlds; minimal hardware and self-centering action, all wrapped up in a stylish, heavy-duty Hinge. Two of these double-acting Hinges will allow you to create 'all-glass' doors weighing up to 140 pounds (63.5 kilograms) with a maximum width of 39 inches (1000 millimeters). Do not exceed two hinges per door.

Sold By: Each

Adjustable: Yes

Back Plate: Full

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Height: 3-9/16 in. (90 mm)

Material: Brass

Maximum Door Weight: 140 Lbs.

Maximum Door Width: 39 in. (991 mm)

Mounting Type: Wall Mount

Width: 5-7/8 in. (149 mm)
