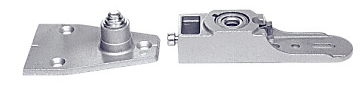

Commercial Door Floor Mount Bottom Pivot Set for Use with 1-1/2" Deep Bottom Door Rail for Side-Load Applications

PART # CH-580

$62.70 USD

PART # CH-580

Sold By: Set

  • 3/16" (5 mm) Height Adjustment
  • G Type for Use with Side-Load Arms


This Jackson Commercial Door Adjustable Bottom Pivot Set is for use with 1-1/2" (38 mm) deep bottom door rail applications. It mounts directly to the floor, and is intended for use with side-load applications. A 3/16" (5 mm) height adjustment is possible with the door installed, and requires an adjustment hole in the end of the door. Maximum weight capacity is 150 lbs. (68 kg).

$62.70 USD
Title
In stock

Sold By: Set

  • 3/16" (5 mm) Height Adjustment
  • G Type for Use with Side-Load Arms


This Jackson Commercial Door Adjustable Bottom Pivot Set is for use with 1-1/2" (38 mm) deep bottom door rail applications. It mounts directly to the floor, and is intended for use with side-load applications. A 3/16" (5 mm) height adjustment is possible with the door installed, and requires an adjustment hole in the end of the door. Maximum weight capacity is 150 lbs. (68 kg).
