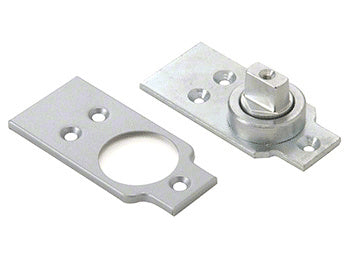

Dormakaba® Bottom Floor Bearing Pivot - Aluminum Finish

PART # CH-581AL

$272.48 USD

PART # CH-581AL

Sold By: Each

Finish: Aluminum

  • For Use With Overhead Concealed Closer or Free-Swing Top Pivot
  • Weight Capacity 250 lb (113 Kg)
  • Requires 1-1/8" (29 mm) Bottom Rail Depth
  • Available With Finished Cover Plate in Aluminum or Dark Bronze


This Dormakaba® Floor Bearing allows use of a side-load top arm with an Overhead Concealed Closer or Free-Swing Top Pivot. It provides a 5/16" (8 mm) bottom door clearance when used with the recommended minimum 1-1/8" (29 mm) bottom rail depth. Supplied with a finished cover to match opening finish.

$272.48 USD
Title
Regular price $272.48
In stock

Sold By: Each

Finish: Aluminum

  • For Use With Overhead Concealed Closer or Free-Swing Top Pivot
  • Weight Capacity 250 lb (113 Kg)
  • Requires 1-1/8" (29 mm) Bottom Rail Depth
  • Available With Finished Cover Plate in Aluminum or Dark Bronze


This Dormakaba® Floor Bearing allows use of a side-load top arm with an Overhead Concealed Closer or Free-Swing Top Pivot. It provides a 5/16" (8 mm) bottom door clearance when used with the recommended minimum 1-1/8" (29 mm) bottom rail depth. Supplied with a finished cover to match opening finish.
