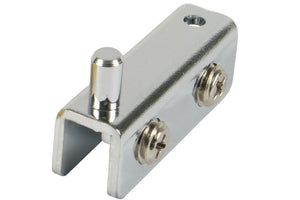

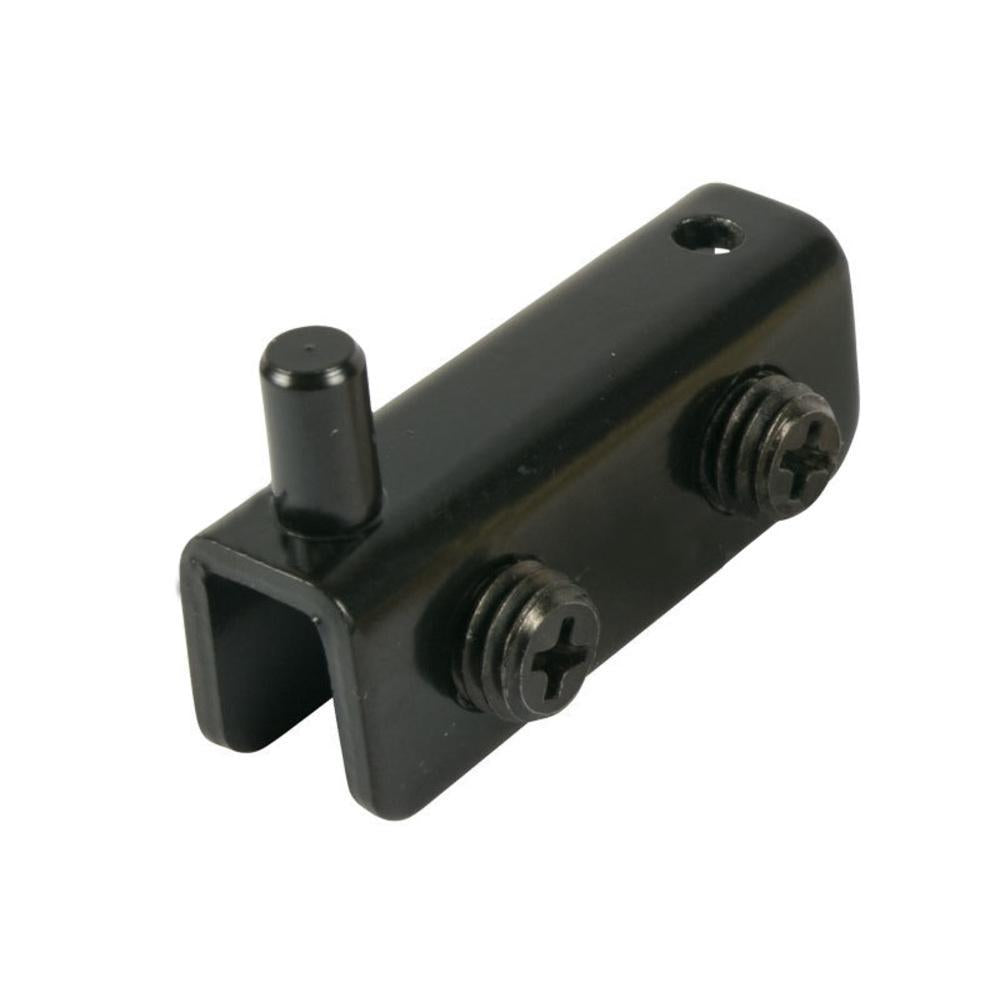

The Standard Mount Glass Door Hinge is a precision-machined cabinet hinge designed to securely mount monolithic tempered glass doors to cabinet frames. Ideal for display cabinets, showcases, retail fixtures, and custom furniture, this hinge provides smooth door operation while maintaining a clean, professional appearance.
Sold by: Each
Available Finishes: Polished Brass; Chrome; Black
Product Type: Glass Door Hinge
Style: Standard Mount Cabinet Glass Door Hinge
Material: Brass
Glass Thickness: 3/16" to 1/4" (5 mm to 6 mm)
Glass Type: Monolithic Tempered Glass
Height: 33/64" (13.1 mm)
Width: 1-19/32" (40.5 mm)
Maximum Door Width: 18" (457.2 mm)
Weight Capacity: 16 lbs. (7.3 kg)
Application: Glass Cabinet Doors, Display Cases, and Showcases
Installation: Standard Mount with Drilled Cabinet Frame Holes and Set Screw Glass Retention
Function: Supports and Secures Glass Cabinet Doors
Features: Precision Machined Construction; Multiple Finish Options; Secure Set Screw Design
Benefits: Smooth Door Operation; Durable Construction; Professional Appearance
Recommended Use: Residential, Commercial, Retail, and Architectural Glass Cabinet Applications
Manufactured from high-quality brass, this hinge offers exceptional strength, durability, and corrosion resistance for long-lasting performance. Available in polished brass, chrome, and black finishes, it complements a wide variety of cabinet styles and architectural designs.
Designed for use with 3/16" to 1/4" (5 to 6 mm) monolithic tempered glass, the hinge mounts into pre-drilled holes in the cabinet frame while integrated set screws securely clamp the glass within the hinge opening. Its precision construction ensures proper door alignment and dependable operation for cabinet glass doors up to 18 inches (457.2 mm) wide and weighing up to 16 lbs. (7.3 kg).
Ideal for new cabinet construction, glass display cases, furniture manufacturing, and replacement projects, this standard mount glass door hinge provides reliable support and smooth operation for frameless glass cabinet doors.
