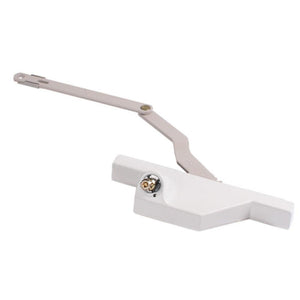

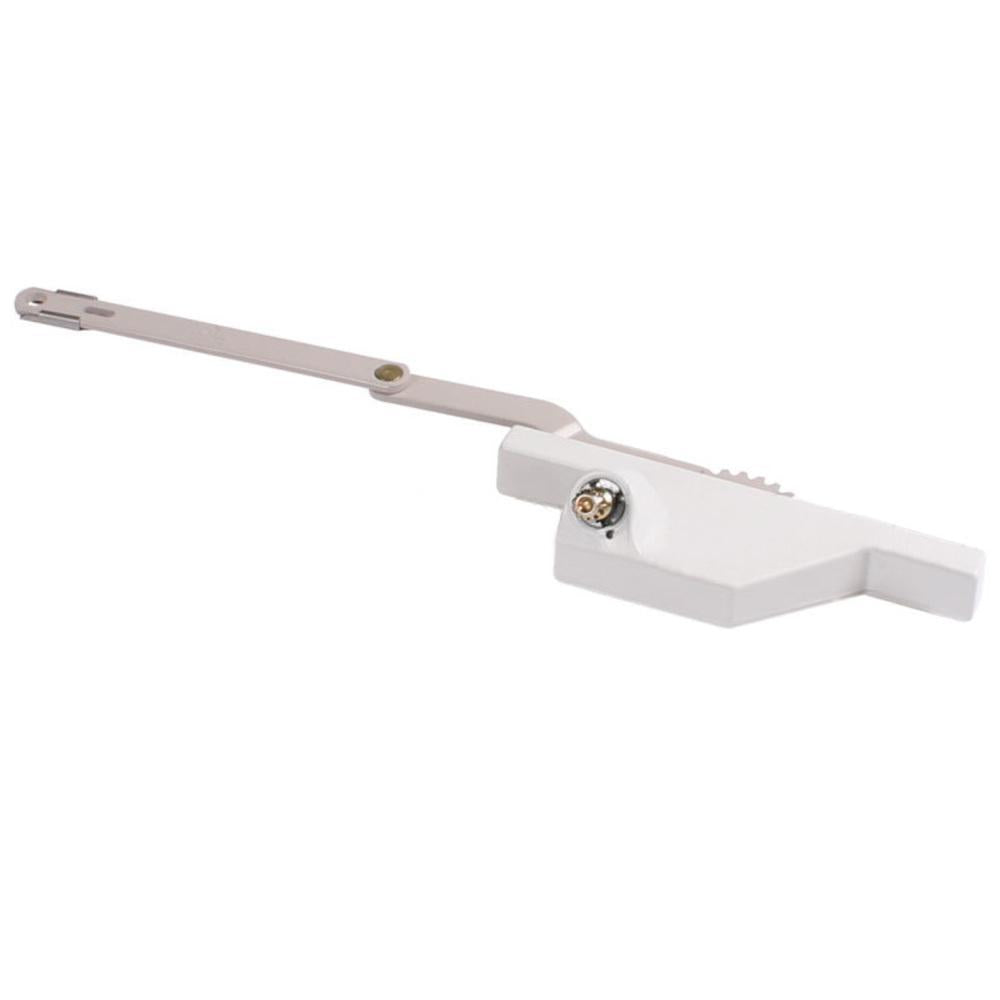

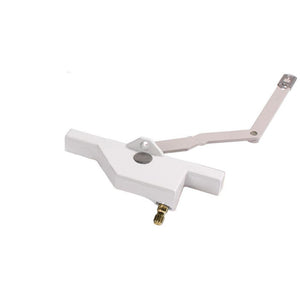

Truth Hardware Dyad Casement Window Operator With Offset Arm and Stability Tab - Left Hand

PART # 23.66.32.001

$64.02 USD

PART # 23.66.32.001

This unique Truth Hardware Dyad Casement Operator provides smooth, continuous control of casement and single vent awning windows. The dyad, or two-linked design, provides smooth operation of windows. The detachable clip linkage allows this window operator to be disengaged from the sash for easy assembly and installation. The recommended screws are 2 pieces of #8-32 x .312 Phillips, Truss Head, Machine Screws an 1 #8 x .750 Phillips, Flat Head, Metal Screws.

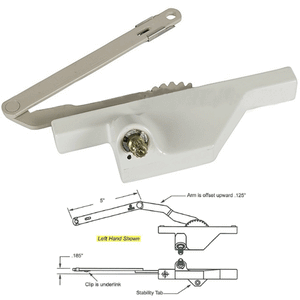

Arm is offset upward .125"

RECOMMENDED SCREWS: 2 @ #8 - 32 X .312 PHILLIPS, TRUSS HEAD, MACHINE SCREWS

Sold by: Each
Hand: Left
Finish: White
Type: Rear Mount

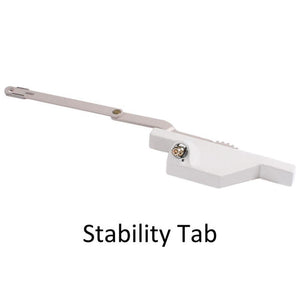

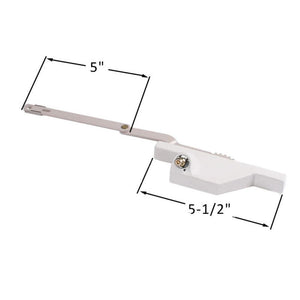

Style: 5 inches arm with Stability Tab
Truth Hardware part number: 23.66.32.001
Material: (Housing) - Die Cast; (Arms/Gears) - Steel

$64.02 USD
Finish
Hand
Sold By
Regular price $64.02
In stock

This unique Truth Hardware Dyad Casement Operator provides smooth, continuous control of casement and single vent awning windows. The dyad, or two-linked design, provides smooth operation of windows. The detachable clip linkage allows this window operator to be disengaged from the sash for easy assembly and installation. The recommended screws are 2 pieces of #8-32 x .312 Phillips, Truss Head, Machine Screws an 1 #8 x .750 Phillips, Flat Head, Metal Screws.

Arm is offset upward .125"

RECOMMENDED SCREWS: 2 @ #8 - 32 X .312 PHILLIPS, TRUSS HEAD, MACHINE SCREWS

Sold by: Each
Hand: Left
Finish: White
Type: Rear Mount
Style: 5 inches arm with Stability Tab
Truth Hardware part number: 23.66.32.001
Material: (Housing) - Die Cast; (Arms/Gears) - Steel
