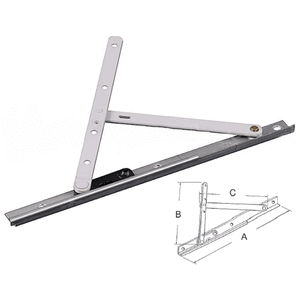

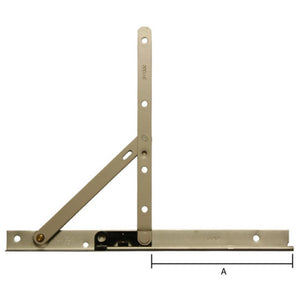

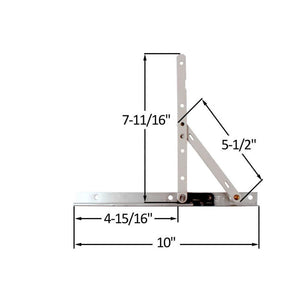

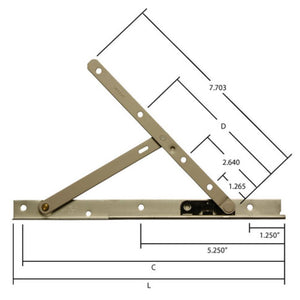

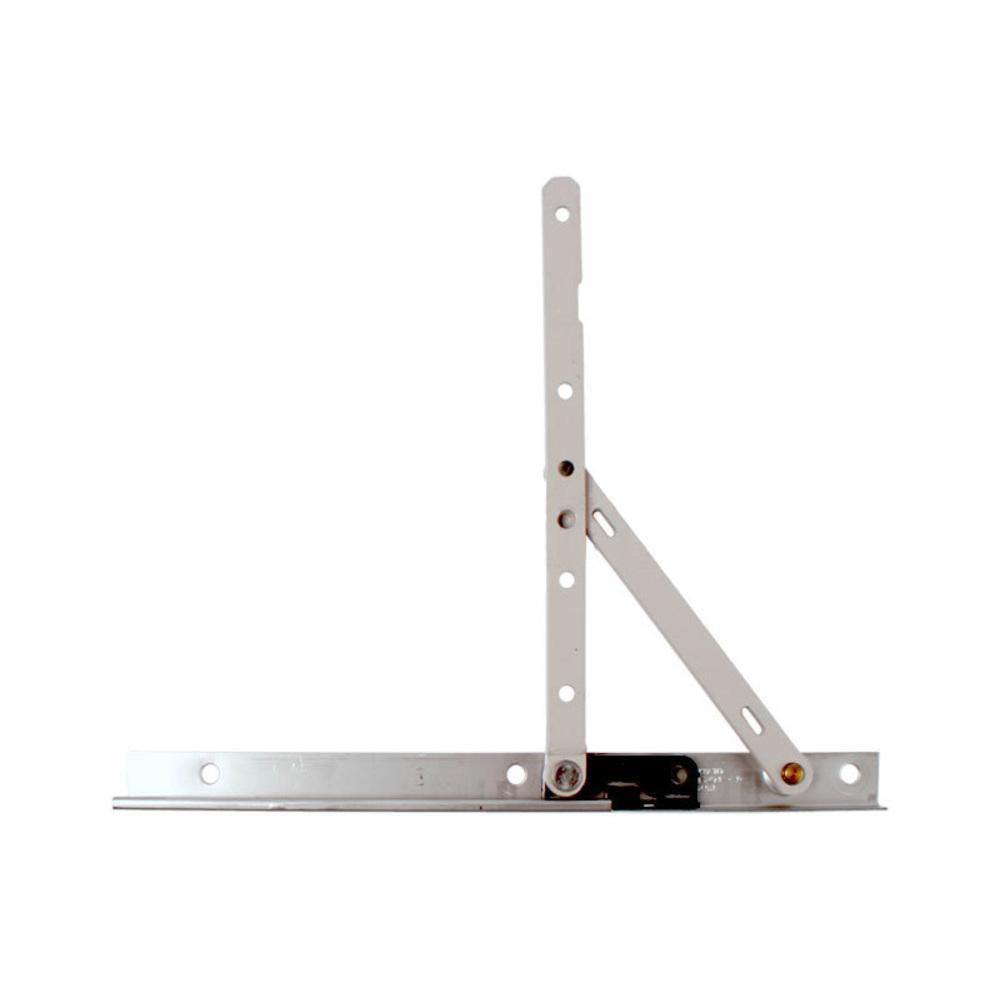

Truth Hardware 10" Concealed Casement Window Hinges - 14.75

PART # 14.75.00.019/020

Truth Hardware's Concealed Casement Hinges provide tamper resistance and beautiful exterior sight lines to your windows. The sash and support arms are made from heavy gauge steel to give the window sash weight carrying capability up to 140 lbs. The Delrin shoe with stainless steel insert provides self cleaning action in the track for longer life. Truth Hardware's Concealed Casement Hinges are used by several window manufacturers. Common numbers that can be found on the 14.75.00.019/020 Concealed Casement Window Hinge are 30744, 31133, 31230, 40942, 40941. The recommended screws per pair for the 14.75.00.019/020 are 8 pieces of #7 x .750 Phillips, Flat Head, Steel, Sheet Metal Screw for the sash arm and 6 pieces of #7 x .750 Phillips, Flat Head, Undercut, SST, Sheet Metal Screws for the track.

Sold By: Pair



$17.72 USD
A
C
D
Regular price $17.72

Truth Hardware's Concealed Casement Hinges provide tamper resistance and beautiful exterior sight lines to your windows. The sash and support arms are made from heavy gauge steel to give the window sash weight carrying capability up to 140 lbs. The Delrin shoe with stainless steel insert provides self cleaning action in the track for longer life. Truth Hardware's Concealed Casement Hinges are used by several window manufacturers. Common numbers that can be found on the 14.75.00.019/020 Concealed Casement Window Hinge are 30744, 31133, 31230, 40942, 40941. The recommended screws per pair for the 14.75.00.019/020 are 8 pieces of #7 x .750 Phillips, Flat Head, Steel, Sheet Metal Screw for the sash arm and 6 pieces of #7 x .750 Phillips, Flat Head, Undercut, SST, Sheet Metal Screws for the track.

Sold By: Pair
