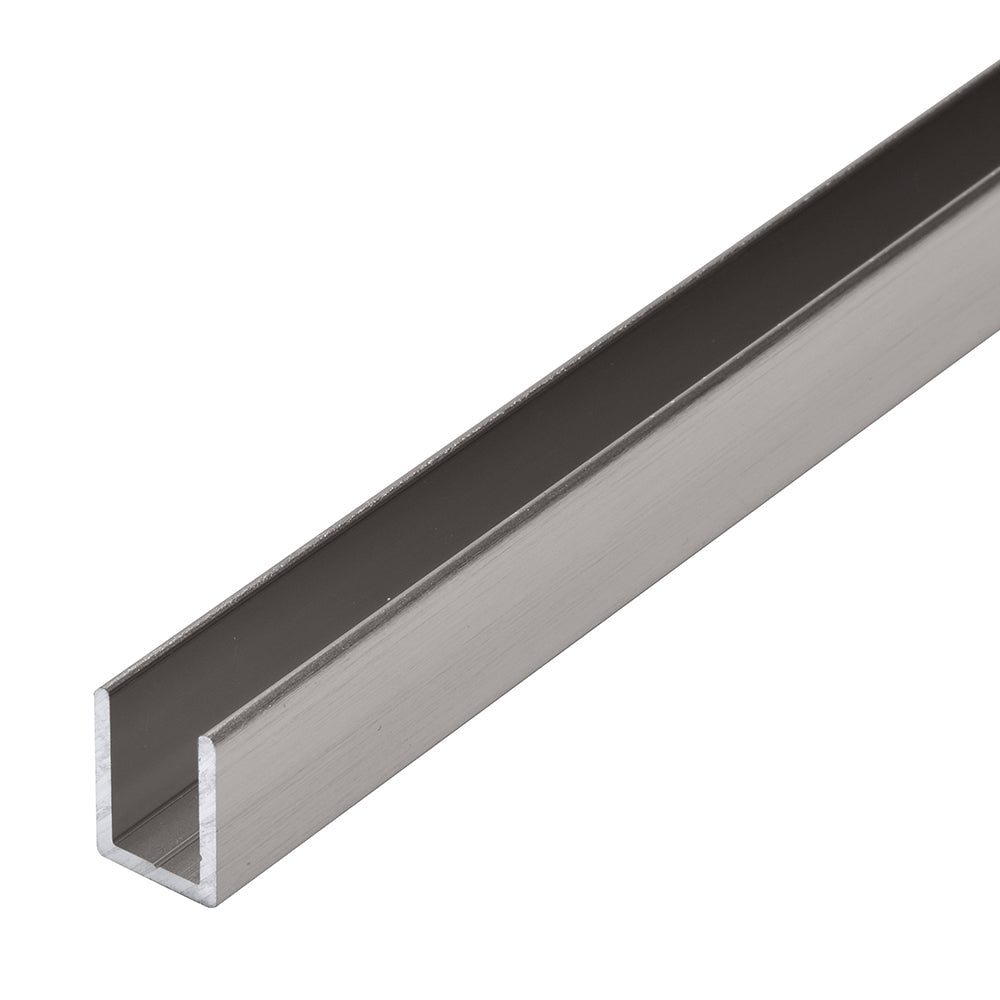

The Brushed Nickel 3/8" Fixed Panel Deep U-Channel – 95" Shower Door Glass Channel is a durable and secure mounting solution designed for frameless shower enclosures. Engineered to firmly anchor fixed glass panels, this deep-profile aluminum U-channel provides enhanced stability while maintaining a clean, modern finish.
Finish/Color: Brushed Nickel
Glazing Pocket Width: 13/32"
Glazing Thickness: 3/8 in. (10 mm)
Height: 3/4 in. (19 mm)
Width: 9/16 in. (14 mm)
Length: 95 in. (2413 mm)
Material: Aluminum
Profile: Deep
Specifically designed for 3/8" (10 mm) monolithic tempered glass, the deep pocket profile does an excellent job of securing fixed panels to the wall, ceiling, or floor. The 3/4" (19 mm) height provides added glass retention compared to regular depth channels, making it ideal for installations requiring extra support.
This deep U-channel may be used alone or paired with a regular depth U-channel, particularly in applications where the glass is inserted into the top channel and then lowered into a standard 3/8" tall bottom channel. Installation is completed by wet glazing with clear silicone to securely bond and stabilize the glass panel.
Individually wrapped to protect the brushed nickel finish, this 95" (2.41 m) channel offers professional-grade performance, clean aesthetics, and dependable glass retention for residential and commercial shower installations.
