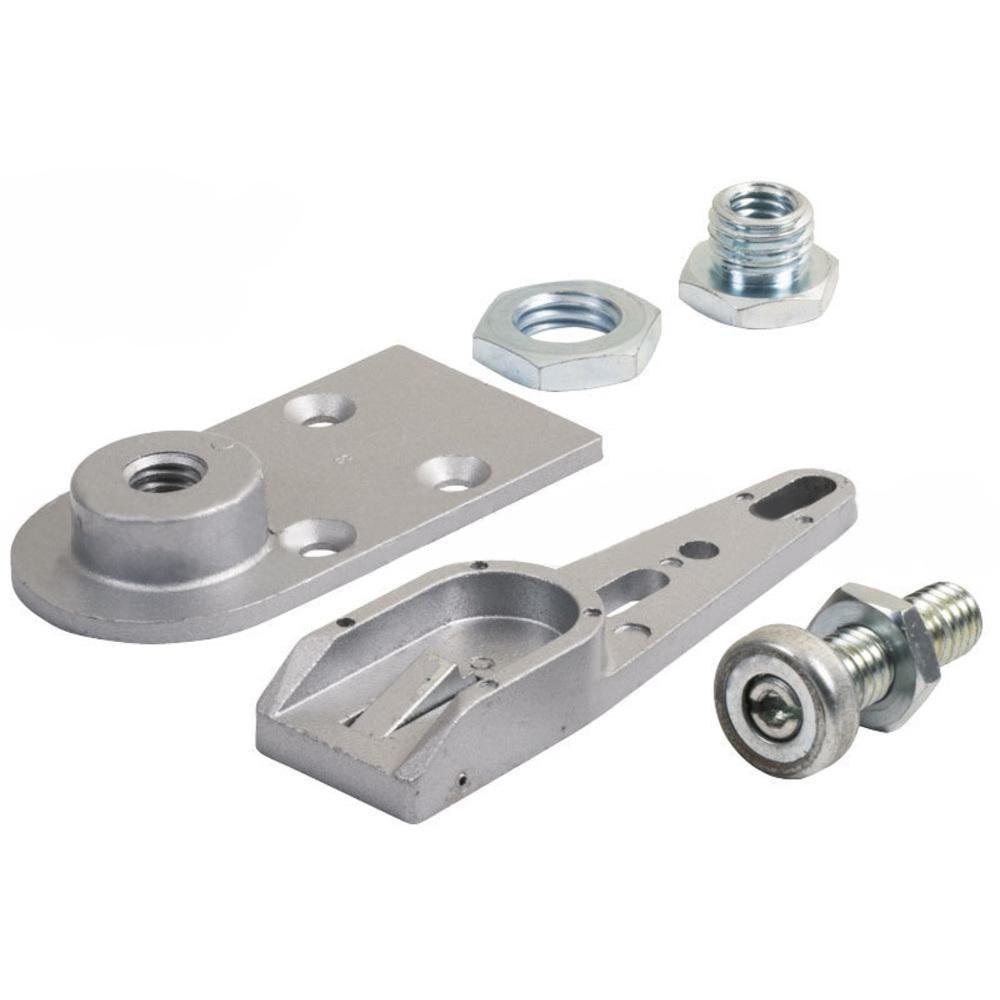

The Jackson® Dual-Purpose Floor or Threshold Mounted Pivot is designed for commercial door applications, providing reliable support and smooth pivot operation for center-hung doors. Ideal for aluminum storefront systems, this bottom pivot ensures proper door alignment and controlled movement in high-traffic environments.
Sold by: Each
Brand: Jackson®
Mounting Type: Floor or Threshold Mounted
Handing: Non-Handed
Recommended Door Type: Aluminum Storefront
Bottom Door Rail Depth: 1"
Maximum Door Weight: 200 lbs (90.7 kg)
Adjustment: 3/16" (5 mm) Height Adjustment
Compatibility: End-Load and Side-Load Arm Systems
Function: Supports Door Alignment and Pivot Operation
Part Number: CH-130
Constructed for durability and consistent performance, this pivot is engineered to support doors weighing up to 200 lbs. Its versatile design allows for installation directly to the floor or threshold, making it suitable for a wide range of commercial door configurations.
Designed for use with 1" deep bottom door rails, this adjustable pivot offers 3/16" height adjustment, allowing fine-tuning with the door either on or off the pivot. Compatible with both end-load and side-load arm systems, it is the standard bottom pivot used in ‘S’ and ‘A’ type door closer packages, ensuring flexibility and dependable performance.
