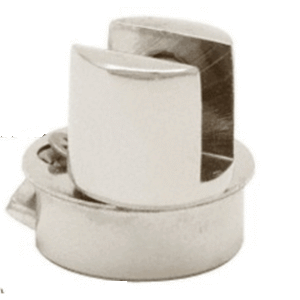

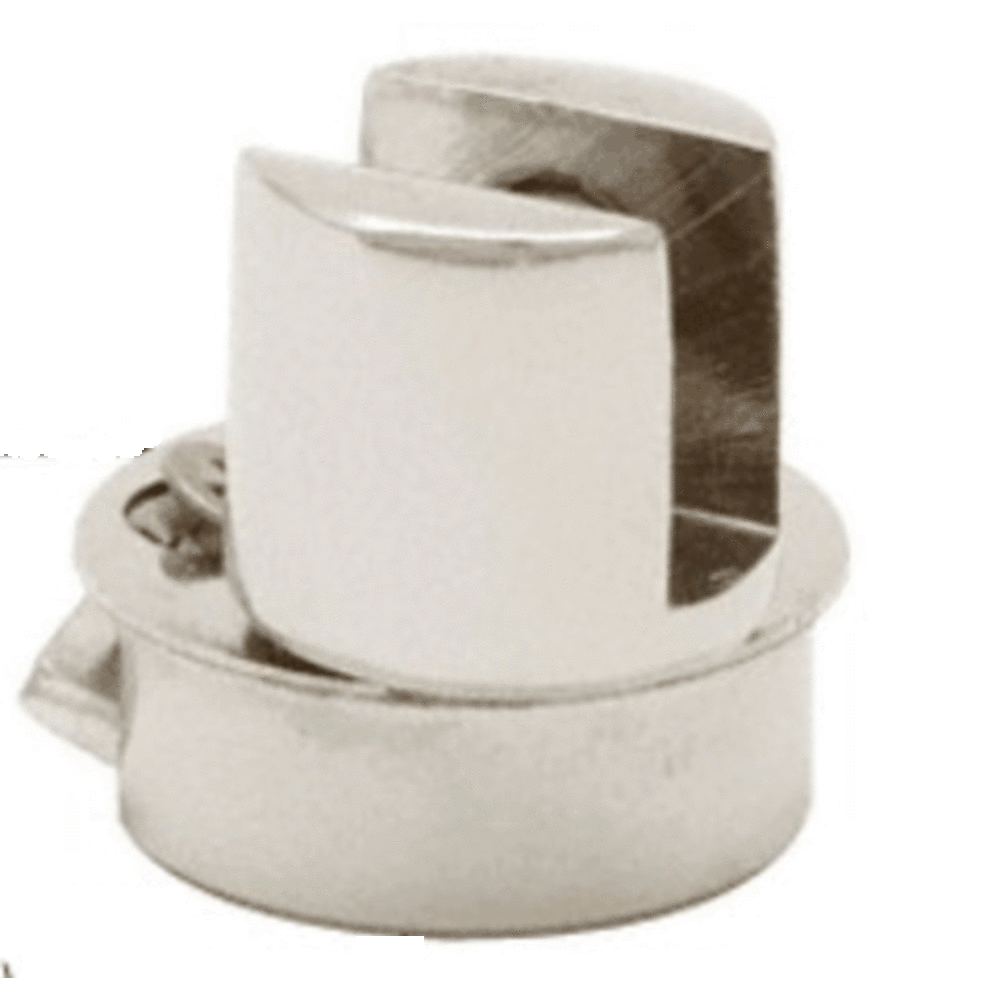

Beretta Barrel Glass Door Hinge

PART # SH-203BN

$292.48 USD

PART # SH-203BN

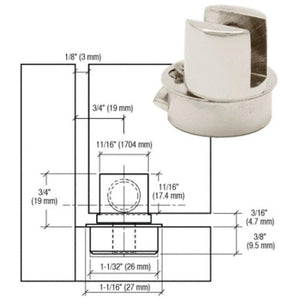

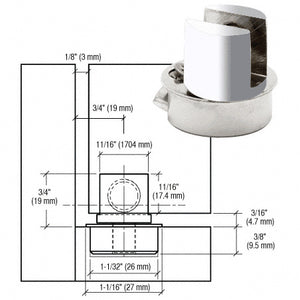

These new Berretta Barrel Glass Door Hinges are for 1/4" (6mm) thick glass. Distinctively designed, the Hinges close to a self-centering position. Each pack contains two Hinges, one upper and one lower. The Hinges require a 1-1/32" (26mm) hole drilled into the wood for installation. A phillips head screw in the Hinge base locks and holds the Hinge in position. The maximum recommended door size is 18"" (457mm) wide x 47" (1200mm) high. Maximum door weight should not exceed 17-1/2 lbs (8 kgs).

Sold By: Pair

Base Diameter: 1-1/32 in. (26.2 mm)

Glazing Thickness: 1/4 in. (6 mm)

Height: 11/16 in. (17.5 mm)

Includes: Two Hinges One Upper and One Lower

Maximum Door Width: 18 in. (457.2 mm)

Weight Capacity: 17 1/5 lbs. (7.8 kg)

$292.48 USD
Finish
Sold By
Glass Thickness
In stock

These new Berretta Barrel Glass Door Hinges are for 1/4" (6mm) thick glass. Distinctively designed, the Hinges close to a self-centering position. Each pack contains two Hinges, one upper and one lower. The Hinges require a 1-1/32" (26mm) hole drilled into the wood for installation. A phillips head screw in the Hinge base locks and holds the Hinge in position. The maximum recommended door size is 18"" (457mm) wide x 47" (1200mm) high. Maximum door weight should not exceed 17-1/2 lbs (8 kgs).

Sold By: Pair

Base Diameter: 1-1/32 in. (26.2 mm)

Glazing Thickness: 1/4 in. (6 mm)

Height: 11/16 in. (17.5 mm)

Includes: Two Hinges One Upper and One Lower

Maximum Door Width: 18 in. (457.2 mm)

Weight Capacity: 17 1/5 lbs. (7.8 kg)
