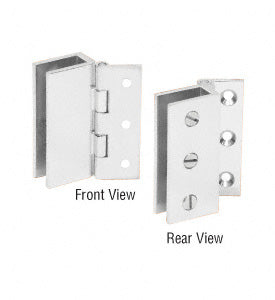

The Chrome Large Wall Mount Set Screw Hinge is designed for showcase, cabinet, and frameless glass door applications, providing smooth and dependable pivot operation for tempered glass doors. Engineered for use with 3/16" to 5/16" (5 mm to 8 mm) glass, this heavy-duty hinge offers secure support and flexible installation without requiring holes or cut-outs in the glass.
Sold by: Pack (2 Hinges)
Finish/Color: Polished Chrome
Material: Brass
Product Type: Large Wall Mount Set Screw Hinge
Glass Thickness Compatibility: 3/16" to 5/16" (5 mm to 8 mm)
Height: 2-3/8" (60.3 mm)
Width: 1-1/4" (31.8 mm)
Maximum Door Width: 18" (457.2 mm)
Weight Capacity: 20 lbs. (9.1 kg)
Pack Quantity: 2
Application: Showcase Cabinets, Display Doors, and Furniture Glass Panels
Function: Provides Smooth Pivot Door Operation
Glass Type: Monolithic Tempered Glass
Installation Features: No Holes or Cut-Outs Required
Mounting Method: Plastic-Tipped Set Screw Glass Retention
Includes: Matching Finish Wood Screws
Features: Heavy-Duty No-Drill Glass Mount Hinge Design
Part Number: SH-232CH
Constructed from durable brass with a polished chrome finish, this wall mount hinge provides long-lasting corrosion resistance and dependable everyday performance in residential and commercial cabinetry applications. Its large hinge design allows support for wider and heavier glass doors while maintaining smooth and reliable operation.
Designed for easy no-drill installation, the glass panel is secured using three plastic-tipped set screws that help protect the glass surface while ensuring a secure hold. Ideal for showcase cabinets, display enclosures, and decorative furniture glass doors, this hinge system offers versatile design flexibility with a clean architectural appearance.
