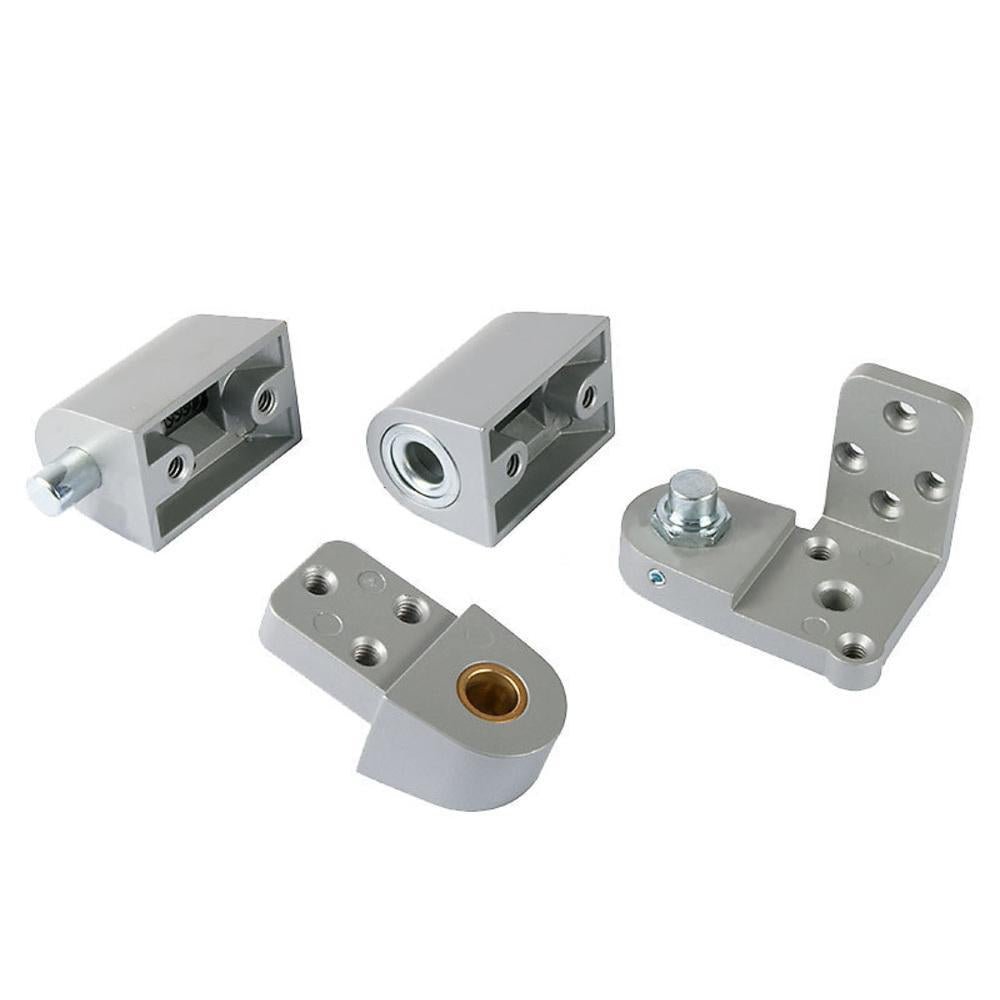

The Aluminum Right Hand Offset Pivot Set Flush with Frame Face is designed for reliable performance in commercial aluminum storefront door applications. Engineered for right-hand doors, this pivot set ensures smooth operation, proper alignment, and controlled door movement in high-traffic environments.
Sold by: Set
Finish/Color: Aluminum
Material: Aluminum
Handing: Right Hand
Pivot Type: Offset
Pivot Style: Flush with Frame Face
Vertical Adjustment: 1/8" (3.2 mm)
Maximum Door Weight: 125 lbs (56.7 kg)
Mounting: Field Sizeable
Recommended Door Type: Aluminum Storefront
Compatibility: U.S. Aluminum
Function: Supports Door Alignment and Pivot Operation
Part Number: CH-106AL-R
Constructed from durable die-cast aluminum with an aluminum finish, this pivot set offers long-lasting strength and corrosion resistance. The offset pivot design sits flush with the frame face for a clean installation, while the built-in vertical adjustment of 1/8" (3.2 mm) allows for precise alignment after installation.
Designed to support doors weighing up to 125 lbs (56.7 kg), this pivot set is suitable for aluminum frames and storefront door systems. It is field sizeable for added installation flexibility and is commonly used on U.S. Aluminum door systems.
Each set includes all necessary fasteners and anchors for a complete installation, making it a dependable solution for commercial door hardware replacement and upgrades.
