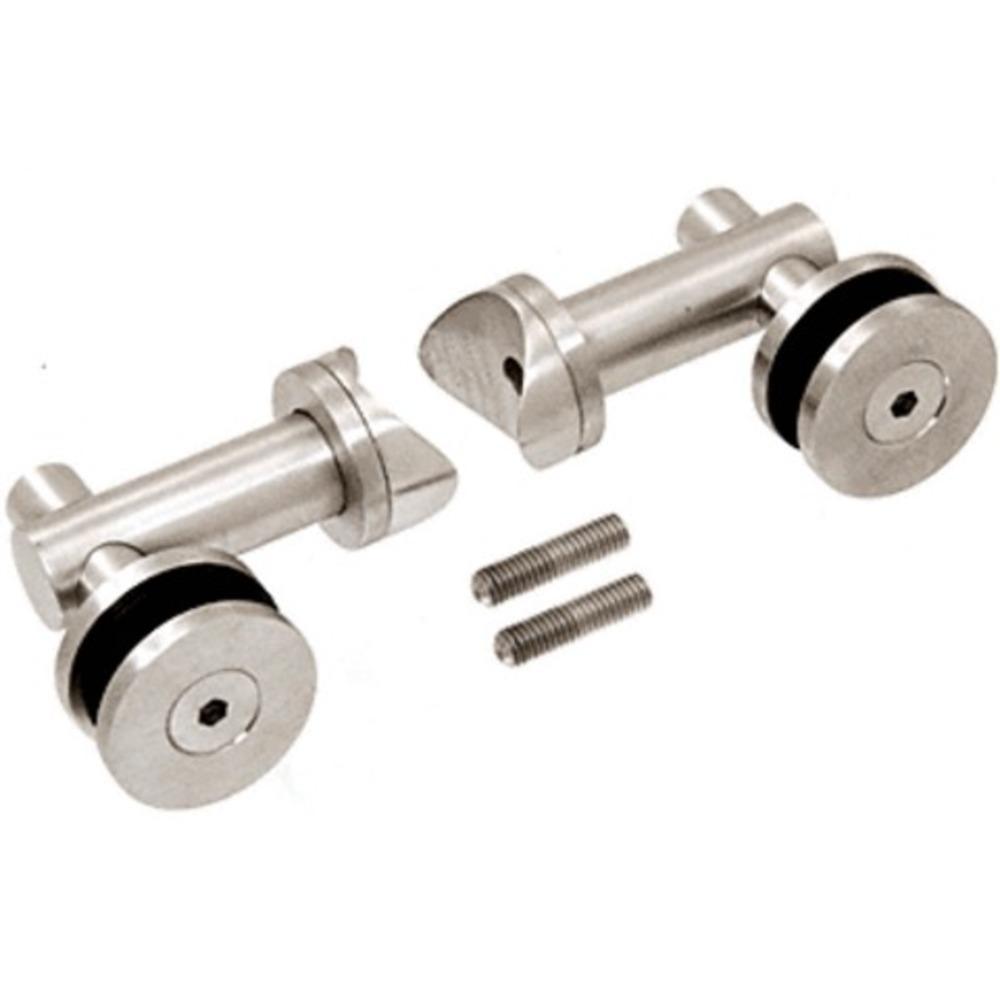

The Brushed Stainless Steel Double Arm Fixed Glass Fitting Set is a durable architectural glass mounting solution designed for securing 1/2" (12 mm) tempered glass in canopies, awnings, railings, and other structural glazing applications. Featuring a compact double-arm design and high-quality stainless steel construction, this fitting provides dependable glass support while maintaining a clean, contemporary appearance.
Sold by: Set
Product Type: Double Arm Fixed Glass Fitting Set
Finish/Color: Brushed Stainless Steel
Material: Stainless Steel
Fitting Style: Double Arm
Mounting Configuration: Fixed
Compatible Glass Thickness: 1/2" (12 mm)
Compatible Glass Type: Tempered Glass (Subject to Project Glazing Specifications)
Glass Fabrication Required: Yes
Required Glass Hole Diameter: 3/4" (19 mm)
Glass Holes Required: One Per Fitting
Compatible Mounting Surfaces: Posts, Columns, Walls, Glass Fins, and Canopy Brackets
Installation Configuration: Straight or Segmented Glass Applications
Included Hardware: Stainless Steel Threaded Studs
Threaded Studs Included: Two 3/8"-16 x 13/16" (20.6 mm)
Additional Threaded Stud Included: One 3/8"-16 x 1-1/4" (32 mm)
Application: Glass Canopies, Awnings, Railings, Architectural Glass Panels, and Structural Glazing
Function: Secures Compatible Glass Panels to Supporting Structures
Features: Stainless Steel Construction, Compact Double Arm Design, Minimal Glass Obstruction, Fixed Mounting Configuration
Recommended Use: Commercial Glass Canopies, Entrance Awnings, Architectural Railings, Custom Glazing, and Specialty Glass Installations
Glass Restriction: Do Not Use with Raw or Annealed Glass
Installation Note: Verify Glass Specifications, Structural Support, and Applicable Building Code Requirements Before Installation
Part Number: GC-283BS
Designed for mounting glass panels to compatible posts, columns, walls, glass fins, and canopy brackets, this fixed fitting set offers versatility for residential and commercial architectural installations. Its compact attachment profile minimizes visual obstruction, allowing the glass to remain the primary design feature while providing a secure connection to the supporting structure.
Manufactured from stainless steel with a brushed finish, this glass fitting offers durability and an attractive architectural appearance. The fixed mounting configuration is suitable for both straight and segmented glass installations, making it a practical choice for custom glass canopies, entrance awnings, decorative railing systems, and specialty glazing projects.
Installation requires only one 3/4" (19 mm) diameter hole per fitting in the glass, simplifying fabrication requirements while maintaining a streamlined mounting appearance. The fitting is designed specifically for compatible 1/2" (12 mm) tempered glass and must not be used with raw or annealed glass.
Each fitting set includes stainless steel threaded studs for mounting to compatible supporting structures. The supplied hardware consists of two 3/8"-16 x 13/16" (20.6 mm) threaded studs and one 3/8"-16 x 1-1/4" (32 mm) threaded stud, providing installation options for the specified mounting configuration.
Ideal for professional glaziers, architectural glass installers, contractors, and railing specialists, this double arm fixed glass fitting offers a practical solution for projects requiring durable mounting hardware with minimal visual interference.
Important: Glass canopies, awnings, and structural glazing systems must be designed and installed according to applicable building codes and engineering requirements. Confirm glass construction, mounting surface capacity, hardware compatibility, and structural loading before installation.
