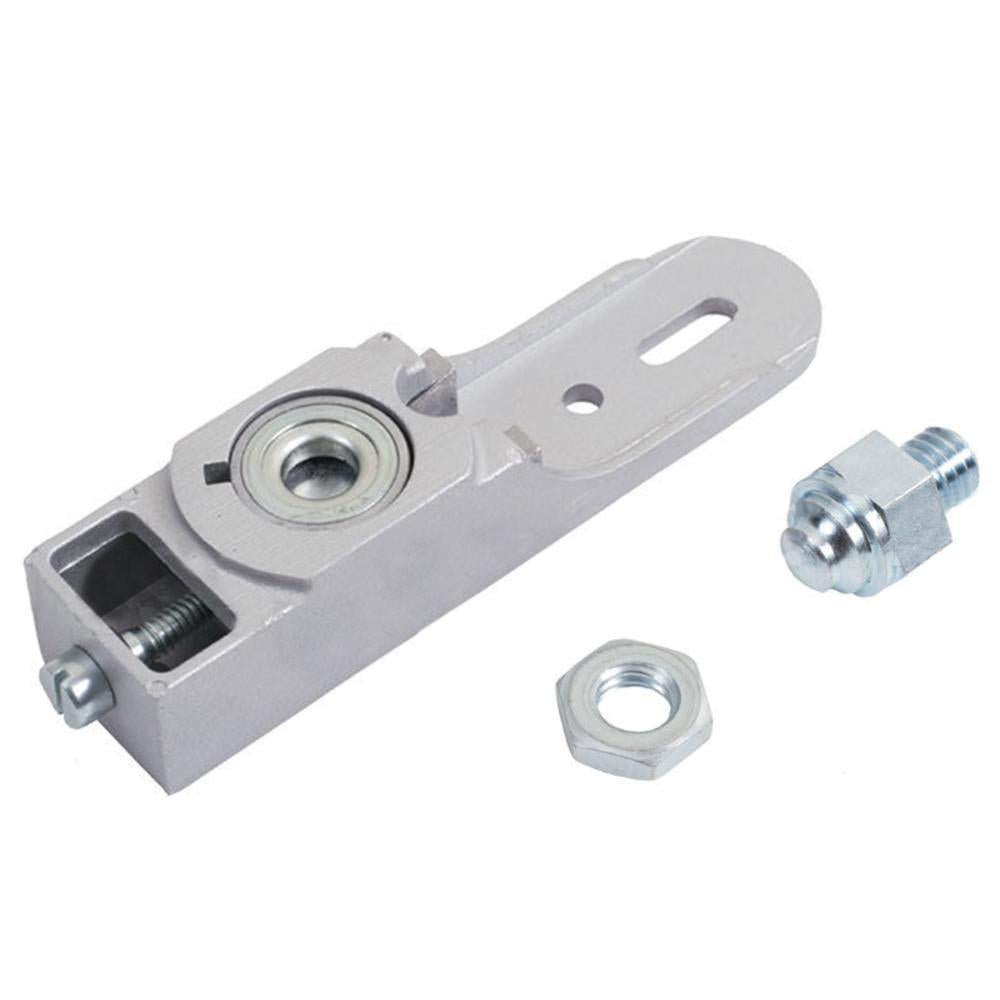

The Jackson® Threshold Mounted Bottom Pivot Set is designed for center-hung pivot door systems, providing reliable support and smooth pivot operation for commercial and residential door applications. Engineered for use with doors featuring a 1-1/2" (38 mm) deep bottom rail, this heavy-duty pivot set ensures proper door alignment and controlled movement in side-load pivot applications.
Sold by: Each
Brand: Jackson®
Product Type: Threshold Mounted Bottom Pivot Set
Pivot Type: Center Hung (Side-Load Arm)
Mounting Type: Threshold / Floor Mounted
Bottom Door Rail Depth: 1-1/2" (38 mm)
Adjustment Range: 3/16" (5 mm) Height Adjustment
Door Weight Capacity: 150 lbs (68 kg)
Handing: Non-Handed
Application: Pivot Door Systems
Recommended Door Types: Aluminum, Wood, Hollow Metal
Function: Supports Door Alignment and Pivot Operation
Features: Adjustable Heavy-Duty Side-Load Pivot Design
Part Number: CH-382
Constructed for durability and dependable long-term performance, this bottom pivot mounts directly to the threshold or floor and is compatible with side-load pivot arms. Its adjustable design allows up to 3/16" (5 mm) vertical height adjustment after installation, making it ideal for fine-tuning door alignment without removing the door or hardware assembly.
Designed for use with aluminum, wood, and hollow metal doors, this pivot set supports doors weighing up to 150 lbs (68 kg). Its non-handed configuration allows versatile installation compatibility for a wide range of pivot door systems in commercial storefronts and residential entrances.
