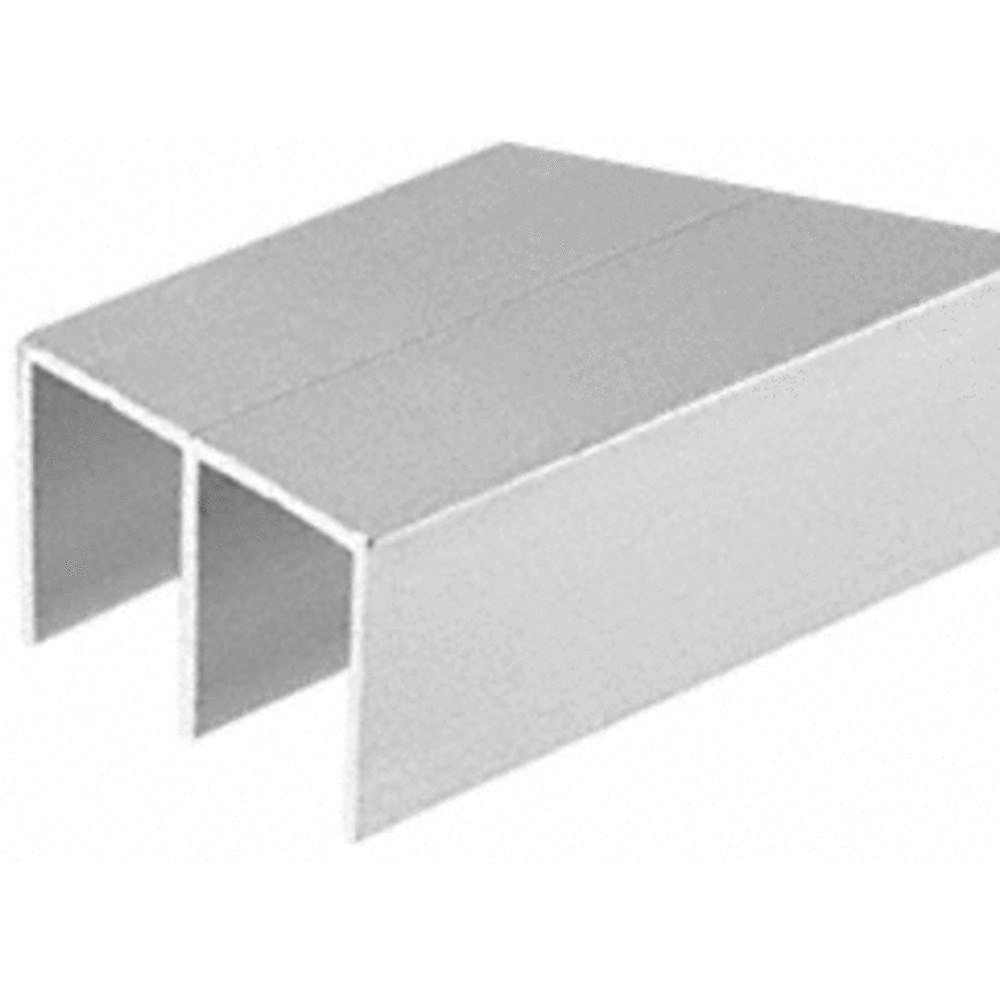

The Satin Anodized Extra Depth Aluminum Upper Channel is designed for sliding glass panel applications, providing a secure and versatile track system for smooth panel installation and operation. Ideal for new installations or replacements, this double channel allows panels to be lifted into position and set onto bottom rails with ease.
Sold by: Each (144" Length)
Finish/Color: Satin Anodized
Product Type: Upper Channel / Double Track
Application: Sliding Glass Panels and Glazing Systems
Function: Guides and Secures Sliding Panels
Material: Aluminum (6063 Alloy)

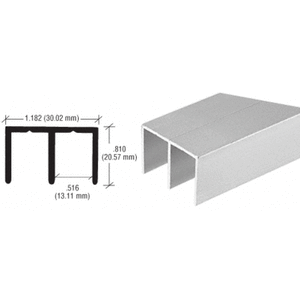

Length: 144 in. (3657.6 mm)
Height: 0.81 in. (20.6 mm)
Width: 1.182 in. (30 mm)
Open Width: 0.516 in. (13.1 mm)
Manufacturer Part Number: SH-226
Constructed from high-quality 6063 aluminum alloy with a satin anodized finish, this channel offers excellent durability, corrosion resistance, and long-lasting performance. The extra depth design enhances functionality during installation, while its universal profile allows it to be used as a top, bottom, or side channel. This makes it a reliable solution for a wide range of glazing and sliding panel systems.
Product must be cut to 8' for shipping. Please include cutting instructions in the ‘Special Instructions for Seller’ box at checkout. Non-returnable item.
