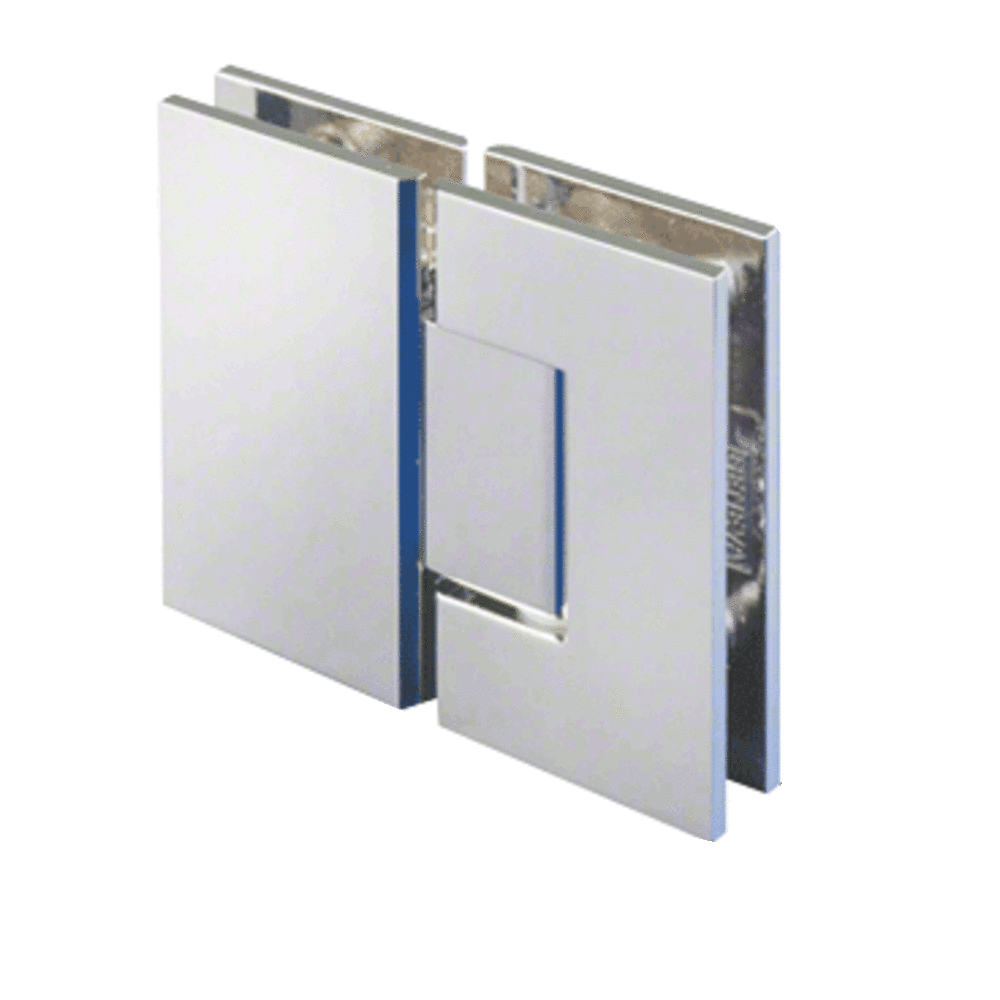

The Geneva® 180 Series 180° Glass-to-Glass Standard Shower Door Hinge is a premium heavy-duty hinge designed for frameless glass shower enclosures. Engineered for 180-degree glass-to-glass applications, this professional-grade hinge provides smooth, reliable operation while maintaining precise door alignment. Factory-set for the standard closing position, it features a self-centering mechanism with a reversible 5° pivot pin to ensure dependable door closure.
Sold by: Each
Brand: Geneva®
Product Type: Frameless Shower Door Hinge
Series: Geneva® 180 Series
Mounting Type: Glass-to-Glass
Glass-to-Glass Angle: 180°
Material: Solid Brass
Internal Components: Stainless Steel Pins and Springs
Glass Thickness: 5/16" to 1/2" (8 mm to 12 mm) Monolithic Tempered Glass

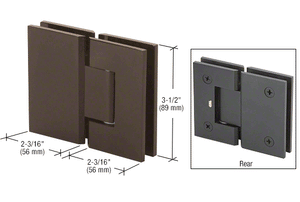

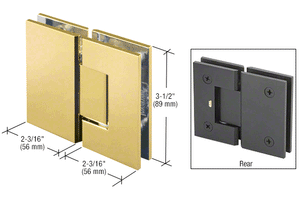

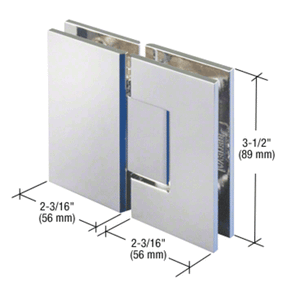

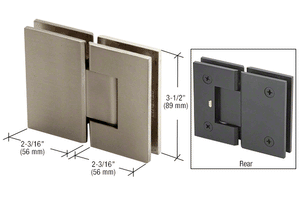

Height: 3-1/2" (89 mm)
Door Portion Width: 2-3/16" (56 mm)
Sidelite Portion Width: 2-3/16" (56 mm)
Edge Profile: Square
Self-Centering: Yes
Pivot Pin: Reversible 5° Pivot Pin
5° Pre-Set: No (Factory Set for Standard Closing Position)
Adjustable: No
Maximum Clamping Screw Torque: 60–70 lbf.in (677.9–791 cN.m)
Maximum Door Weight (2 Hinges): 80 lbs. (36.3 kg)
Maximum Door Weight (3 Hinges): 120 lbs. (54.4 kg)
Maximum Door Width (2 Hinges): 28"
Maximum Door Width (3 Hinges): 32"
Application: Frameless Glass Shower Enclosures
Features: Solid Brass Construction; Stainless Steel Internal Components; Self-Centering Design; Factory Set Standard Closing Position
Benefits: Smooth Door Operation; Reliable Self-Centering Performance; Long-Lasting Corrosion Resistance
Recommended Use: Residential and Commercial Frameless Shower Door Installations and Replacement Applications
Available Part Numbers: BH-436BN, BH-436BR, BH-436CH, BH-436ORB
Manufactured from solid brass with stainless steel internal pins and springs, the Geneva® hinge is built to provide exceptional durability and corrosion resistance in wet bathroom environments. Designed for use with monolithic tempered glass ranging from 5/16" to 1/2" (8 mm to 12 mm) thick, it offers long-lasting performance for both residential and commercial shower installations.
This hinge supports doors weighing up to 80 lbs. when using two hinges or up to 120 lbs. when using three hinges. Maximum recommended door widths are 28" with two hinges and 32" with three hinges. For proper installation, apply a medium-strength threadlocker to the cover plate screws. Available in several attractive finishes to complement virtually any bathroom décor.
Ideal for new frameless shower installations and replacement projects, the Geneva® 180 Series hinge delivers reliable performance, smooth self-centering action, and a clean, professional appearance.
