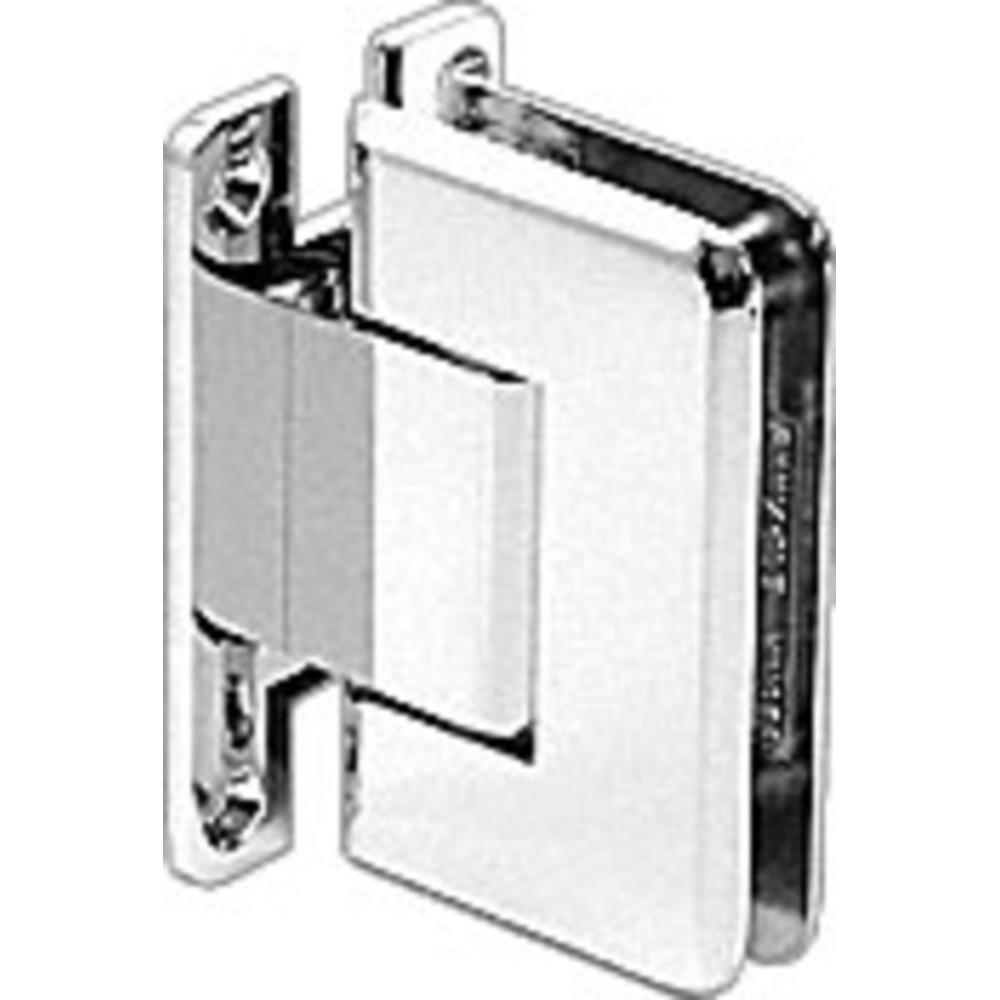

Shower Door Pinnacle Series Adjustable Wall Mount Full Back Plate Hinge

PART # BH-324BN

$53.38 USD

PART # BH-324BN

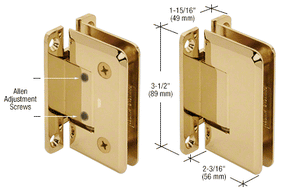

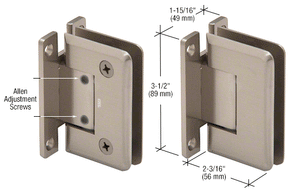

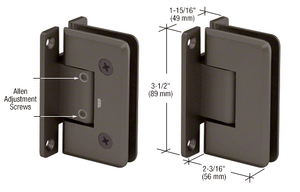

The Pinnacle Adjustable Series of professional shower door hinges are able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Pinnacle Adjustable Series has taken our popular Pinnacle Series to a new level. Adjustment to accommodate the angle desired (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. Tighten the Allen screws in the new self-centering location. The shower door can swing 90 degrees inwards and outwards (adjusting angle from factory set position will reduce 90 degrees swing in that direction). For shower doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.

$53.38 USD
Material
Glass Thickness
Finish
In stock

The Pinnacle Adjustable Series of professional shower door hinges are able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) tempered safety glass. A variety of two styles, Wall Mount and Glass-to-Glass types, gives design flexibility and allows the designer/installer to create custom enclosures limited only by their imagination. The Pinnacle Adjustable Series has taken our popular Pinnacle Series to a new level. Adjustment to accommodate the angle desired (up to 90 degrees) is done after the door is installed. Once the door is hung, simply loosen the allen screws and turn the door to the desired closed position. Tighten the Allen screws in the new self-centering location. The shower door can swing 90 degrees inwards and outwards (adjusting angle from factory set position will reduce 90 degrees swing in that direction). For shower doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
