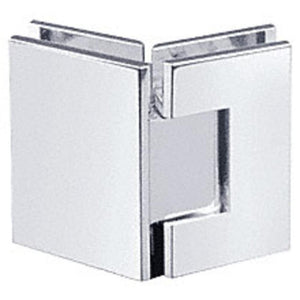

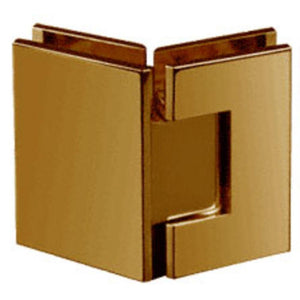

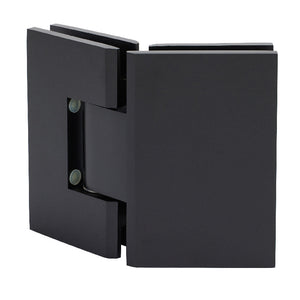

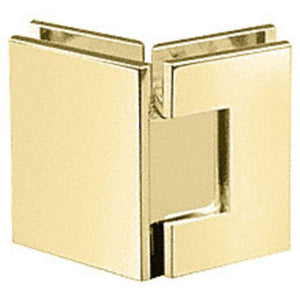

Shower Door Vienna Series 135 Degree Glass-to-Glass Hinge

PART # BH-332BN

$191.52 USD

PART # BH-332BN

The Vienna Series of professional shower door hinges are designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. This allows the Vienna Hinge to be used with it's own "mouse-ears" cut-out, or in some cases fit competitive "mouse-ears" cut-outs. On the other hand, to enable increased adjust-ability, the two pins can be removed. This allows the Vienna Hinge to fit it's own rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. An Optional Custom Pivot pin can be ordered to accommodate off angle installations.

Sold By: Each

5 Degree Pre-Set: No

Adjustable: No

Design Style: Squared

Edge Profile: Square

Enclosure Type: Tailor Made Solutions

Glass To Glass Angle: 135

Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)

Height: 3-15/16 in. (100 mm)

Material: Brass

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Glass To Glass

Opening Style: Swing(side)

Self-Centering: Yes

Width - Door Portion: 2-1/4 in. (57 mm)

Width - Sidelite Portion: 2-11/16"

$191.52 USD
Material
Glass Thickness
Finish
Regular price $191.52
In stock

The Vienna Series of professional shower door hinges are designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. This allows the Vienna Hinge to be used with it's own "mouse-ears" cut-out, or in some cases fit competitive "mouse-ears" cut-outs. On the other hand, to enable increased adjust-ability, the two pins can be removed. This allows the Vienna Hinge to fit it's own rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. An Optional Custom Pivot pin can be ordered to accommodate off angle installations.

Sold By: Each

5 Degree Pre-Set: No

Adjustable: No

Design Style: Squared

Edge Profile: Square

Enclosure Type: Tailor Made Solutions

Glass To Glass Angle: 135

Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)

Height: 3-15/16 in. (100 mm)

Material: Brass

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Glass To Glass

Opening Style: Swing(side)

Self-Centering: Yes

Width - Door Portion: 2-1/4 in. (57 mm)

Width - Sidelite Portion: 2-11/16"
