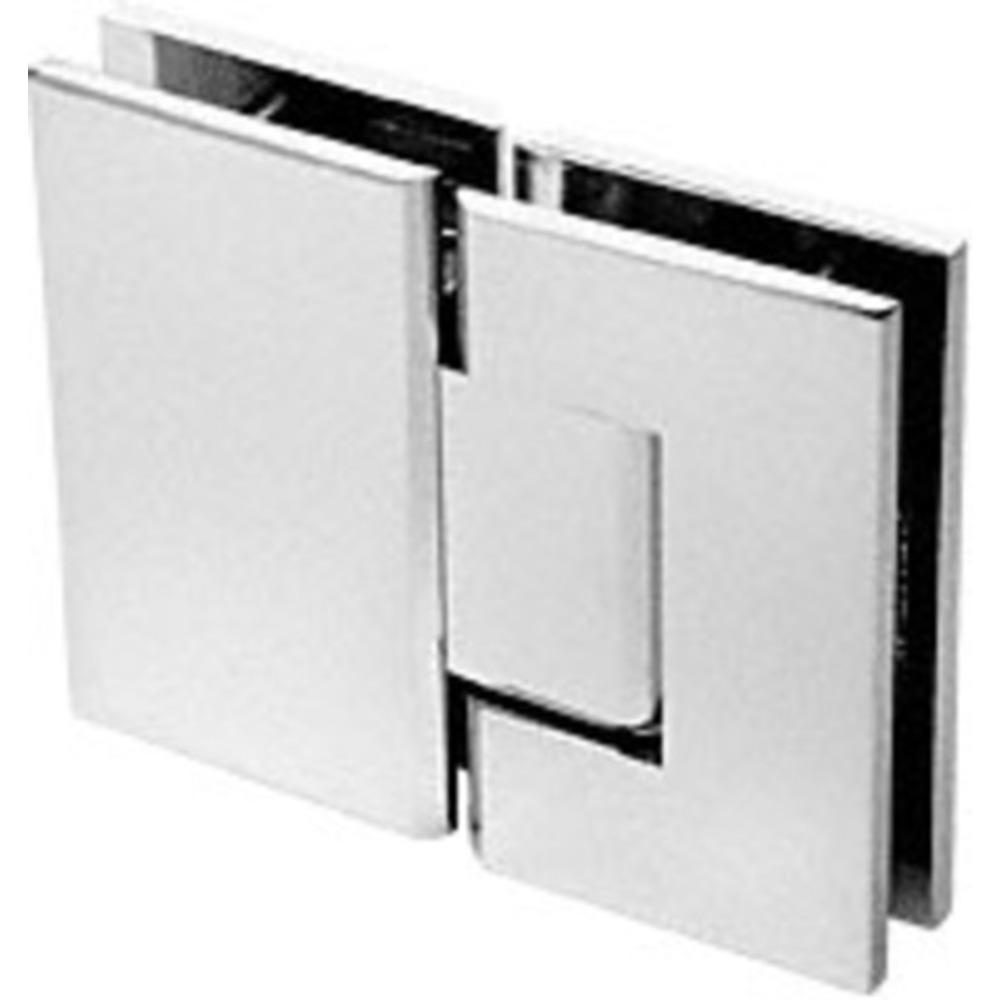

The Vienna Series of professional shower door hinges are designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. Available in both Wall Mount and Glass-to-Glass styles, it provides design flexibility. Vienna Series Hinges are constructed of solid brass with all moving parts (pins and springs) in stainless steel. Two strategically placed pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. This allows the Vienna Hinge to be used with it's own "mouse-ears" cut-out, or in some cases fit competitive "mouse-ears" cut-outs. On the other hand, to enable increased adjust-ability, the two pins can be removed. This allows the Vienna Hinge to fit it's own rectangular shape, square cornered cut-out, or in some cases, fit competitive rectangular shaped, square cornered cut-outs. An Optional Custom Pivot pin can be ordered to accommodate off angle installations.
Sold By: Each
5 Degree Pre-Set: No
Adjustable: No
Glass To Glass Angle: 180 Degree
Glazing Thickness: 3/8 in. to 1/2 in. (10 mm to 12 mm)

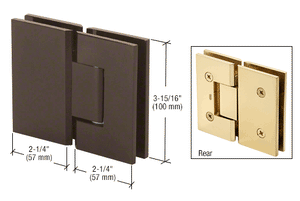

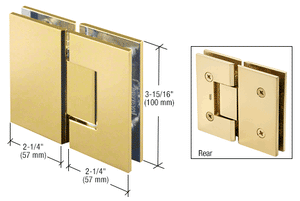

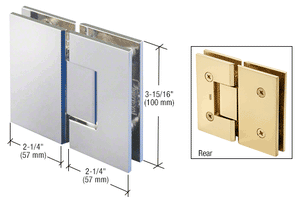

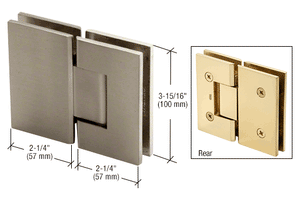

Height: 3-15/16 in. (100 mm)
Material: Brass
Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)
Maximum Door Width: 36 in. (914 mm)
Mounting Type: Glass To Glass
Opening Style: Swing
Width - Door Portion: 2-1/4 in. (57 mm)
Width - Sidelite Portion: 2-1/4 in.
