The Surface Mount Cabinet Pivot Hinges are premium replacement hinges designed for frameless glass cabinet doors. Manufactured from solid brass, these hinges provide smooth, reliable pivoting action while supporting glass doors in display cabinets, showcases, and custom cabinetry.
Sold by: Set (Top and Bottom Hinges)
Finish/Color: Polished Chrome, Brushed Nickel, Brass
Product Type: Surface Mount Cabinet Pivot Hinges
Material: Brass
Glass Thickness: 1/4" to 5/16" (6 to 8 mm)

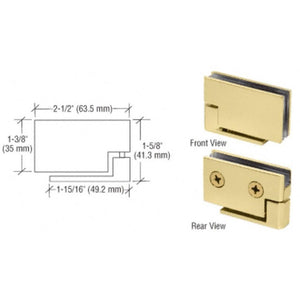

Height: 1-5/8" (41.3 mm)
Width: 2-1/2" (63.5 mm)
Maximum Door Width: 24" (609.6 mm)
Maximum Door Weight: 50 lbs. (22.7 kg)
Pack Quantity: 2 (Top and Bottom Hinge Set)
Application: Frameless Glass Cabinet and Showcase Doors
Glass Fabrication Required: One Hole and One Cut-Out
Minimum Clearance Required: 1/4" (6 mm) Top and Bottom
Function: Supports and Pivots Glass Cabinet Doors
Recommended Use: Replacement and New Glass Cabinet Installations
Part Numbers: SH-206BN, SH-206BR, SH-206CH
Designed for 1/4" to 5/16" (6 to 8 mm) glass, these pivot hinges accommodate glass doors up to 24" (610 mm) wide with a maximum recommended door weight of 50 lbs. (22.7 kg). Each package includes one complete top and bottom hinge set, providing everything needed to install one glass door.
Installation requires one hole and one cut-out in the glass. A minimum clearance of 1/4" (6 mm) is required at both the top and bottom of the door for proper operation. Precision-machined brass construction provides excellent durability, corrosion resistance, and smooth long-term performance.
Available in Polished Chrome, Brushed Nickel, and Brass finishes, these pivot hinges complement a wide variety of cabinet and showcase designs.
Ideal for new installations, custom cabinetry, and replacement projects, these surface mount pivot hinges provide dependable operation and a clean, professional appearance.
