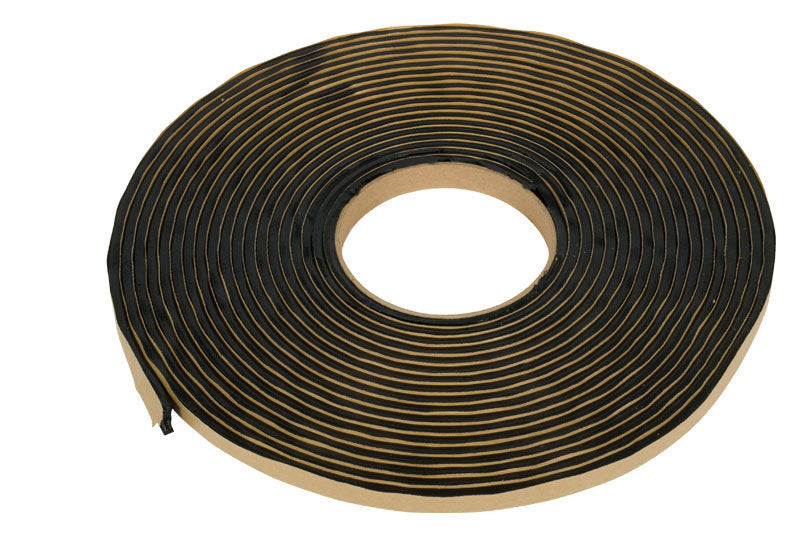

Tremco VISIONstrip – 1/16" Glazing Seal Tape

PART # SG-134

$14.64 USD

PART # SG-134

The Tremco VISIONstrip – 1/16" Glazing Seal Tape is a precision-engineered glazing solution designed for high-performance commercial curtain wall and window systems requiring minimal thickness and accurate alignment. Color: Black, this professional-grade glazing seal provides consistent compression control and a clean sightline appearance in demanding architectural applications.

  • Size: 1/16"

  • Roll Length: 50 ft

  • Case Size: 650 ft (13 rolls)

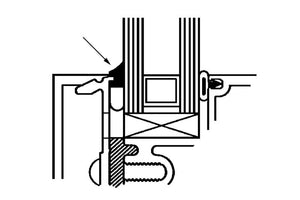

VISIONstrip is a precision extruded glazing seal consisting of an EPDM rubber extrusion positioned at the sightline, combined with a 100% solid, highly adhesive and elastic cross-linked butyl preformed sealant bonded below. This single-component profile creates a positive wet seal between metal and glass surfaces while maintaining the clean, finished appearance of a traditional gasket at the sightline. The integrated EPDM and butyl construction simplifies installation and helps ensure reliable adhesion and uniform compression.

Designed for use in compression glazing systems, VISIONstrip is ideal for high-performance applications including curtain walls, punched window systems, ribbon window systems, and sloped glazing assemblies. Its durable construction supports long-term weather resistance and dependable building envelope performance.

A mock-up is recommended to verify acceptable mating between both VISIONstrip and the metal nib prior to full-scale installation.

No returns on consumable supplies.

$14.64 USD
Title
In stock

The Tremco VISIONstrip – 1/16" Glazing Seal Tape is a precision-engineered glazing solution designed for high-performance commercial curtain wall and window systems requiring minimal thickness and accurate alignment. Color: Black, this professional-grade glazing seal provides consistent compression control and a clean sightline appearance in demanding architectural applications.

  • Size: 1/16"

  • Roll Length: 50 ft

  • Case Size: 650 ft (13 rolls)

VISIONstrip is a precision extruded glazing seal consisting of an EPDM rubber extrusion positioned at the sightline, combined with a 100% solid, highly adhesive and elastic cross-linked butyl preformed sealant bonded below. This single-component profile creates a positive wet seal between metal and glass surfaces while maintaining the clean, finished appearance of a traditional gasket at the sightline. The integrated EPDM and butyl construction simplifies installation and helps ensure reliable adhesion and uniform compression.

Designed for use in compression glazing systems, VISIONstrip is ideal for high-performance applications including curtain walls, punched window systems, ribbon window systems, and sloped glazing assemblies. Its durable construction supports long-term weather resistance and dependable building envelope performance.

A mock-up is recommended to verify acceptable mating between both VISIONstrip and the metal nib prior to full-scale installation.

No returns on consumable supplies.
