Nylon Plunger Latches for Window Screens – Spring-Loaded Screen Retainer for 3/4" x 1/4" or 5/16" Frames

PART # SCH-240

$0.92 USD

PART # SCH-240

The Nylon Plunger Latches for Window Screens are designed to securely hold window screens in place within metal frames. Ideal for residential applications, these spring-loaded latches provide a simple and reliable solution for maintaining proper screen positioning while allowing for easy removal when needed.

Sold by: Each
Color: Black
Cap Length: 7/16" (11.1 mm)
Frame Compatibility: 3/4" x 1/4", 5/16"
Screen Thickness Range: 1/4" to 7/16" (6.3 to 11 mm)
Material: Nylon
Function: Holds Window Screen in Frame
Type: Spring-Loaded Plunger

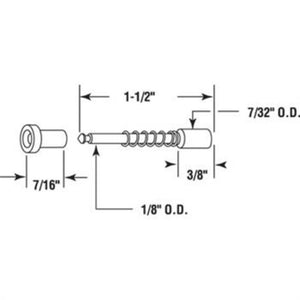

Installation: Drill Required (7/32" and 1/8" holes)
Part Number: SCH-240

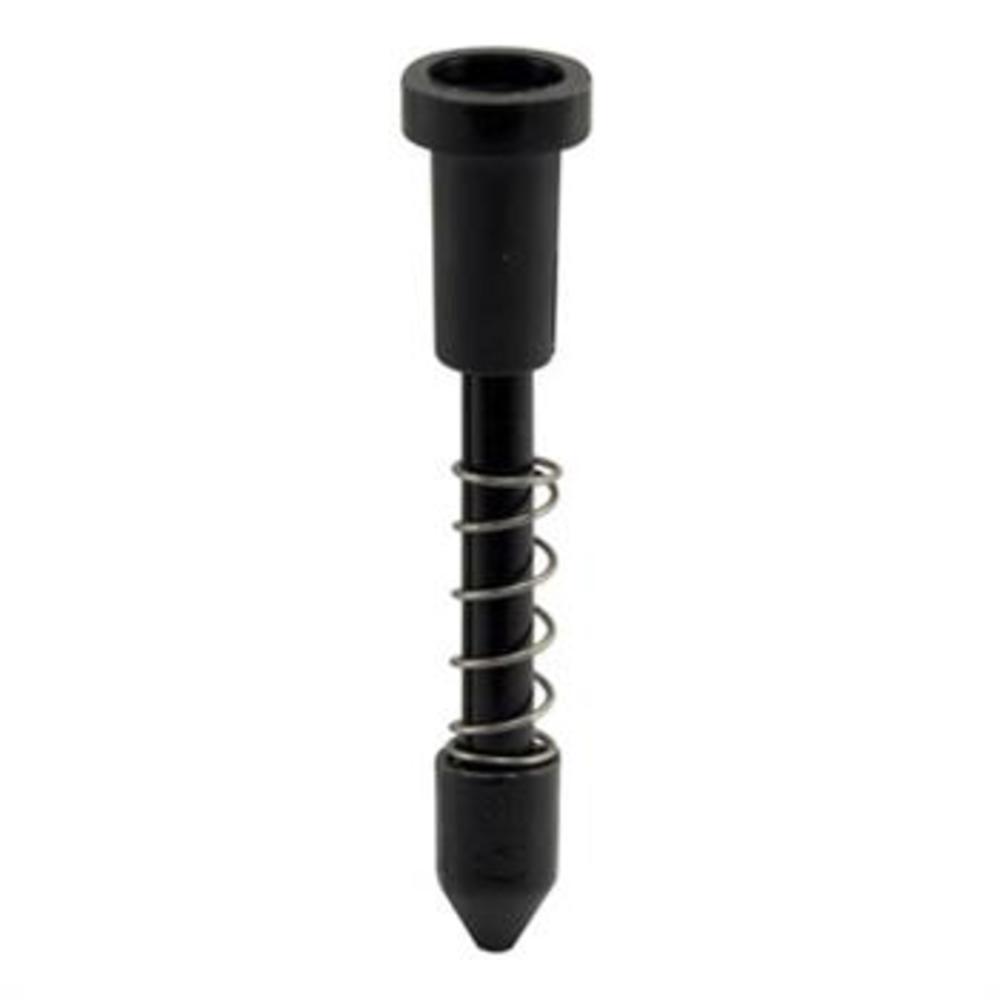

Constructed from durable nylon, these plunger latches feature a spring-loaded mechanism that allows the plunger to engage securely into a pre-drilled hole in the frame. Designed to fit 3/4" x 1/4" or 5/16" screen frames, they are compatible with screens ranging from 1/4" to 7/16" (6.3 to 11 mm) in thickness. The black finish offers a clean, unobtrusive appearance.

Installation requires drilling a 7/32" hole using a 601316 drill for the larger diameter and a 1/8" hole on the opposite side for proper fit. These latches are ideal for replacing worn or damaged screen retainers.

$0.92 USD
Sold By
Hardware material
In stock

The Nylon Plunger Latches for Window Screens are designed to securely hold window screens in place within metal frames. Ideal for residential applications, these spring-loaded latches provide a simple and reliable solution for maintaining proper screen positioning while allowing for easy removal when needed.

Sold by: Each
Color: Black
Cap Length: 7/16" (11.1 mm)
Frame Compatibility: 3/4" x 1/4", 5/16"
Screen Thickness Range: 1/4" to 7/16" (6.3 to 11 mm)
Material: Nylon
Function: Holds Window Screen in Frame
Type: Spring-Loaded Plunger
Installation: Drill Required (7/32" and 1/8" holes)
Part Number: SCH-240

Constructed from durable nylon, these plunger latches feature a spring-loaded mechanism that allows the plunger to engage securely into a pre-drilled hole in the frame. Designed to fit 3/4" x 1/4" or 5/16" screen frames, they are compatible with screens ranging from 1/4" to 7/16" (6.3 to 11 mm) in thickness. The black finish offers a clean, unobtrusive appearance.

Installation requires drilling a 7/32" hole using a 601316 drill for the larger diameter and a 1/8" hole on the opposite side for proper fit. These latches are ideal for replacing worn or damaged screen retainers.
