Z-Series Stainless Steel Square Glass Clamp – Radius Base for 1/4" to 5/16" Glass

PART # GC-271PS

$89.98 USD

PART # GC-271PS

The Z-Series Square Type Radius Base Glass Clamp is designed for secure mounting of glass panels in railing systems, partitions, mezzanines, and windbreak applications. Ideal for both interior and exterior use, this clamp provides a strong and reliable hold while maintaining a clean, modern appearance.

Sold by: Each
Finish/Color: Stainless Steel (GC-271SS) / Powder-Coated Zinc (GC-271PS)
Product Type: Glass Clamp
Application: Railings, Partitions, Mezzanines, Windbreaks
Function: Secures Glass Panels to Tubing
Material: Stainless Steel or Zinc
Profile: Square
Base Type: Radius (For 2" Round Tubing)
Glass Thickness Compatibility: 1/4 in. to 5/16 in. (6 mm to 8 mm)

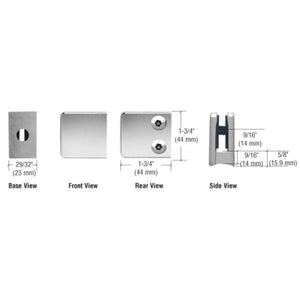

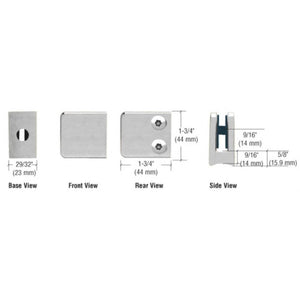

Height: 2-1/4 in. (57 mm)
Width: 2-1/8 in. (54 mm)
Depth: 15/16 in. (24 mm)
Includes: Rubber Gaskets, Steel Pin with Grommet (Optional Use)
Installation Notes:

  • Drill 17/32 in. (13.5 mm) hole for Rivet-Nut installation
  • 1/2 in. (12 mm) hole required if using steel pin for added support
    Features: Corrosion Resistant, Heavy-Duty Construction, Optional Pin Support
    Manufacturer Part Numbers: GC-271SS, GC-271PS

Constructed from high-quality stainless steel or powder-coated zinc, this clamp offers excellent durability and corrosion resistance. The square profile with a radius base is specifically designed for use on 2" diameter round tubing, ensuring a precise fit. Compatible with 1/4" to 5/16" (6 to 8 mm) monolithic tempered glass, it includes rubber gaskets for a secure grip and optional steel pin support for added stability.

Engineered for versatility and strength, this clamp is suitable for a wide range of architectural and commercial glass installations.

$89.98 USD
Finish
Glass Thickness
Sold By
In stock

The Z-Series Square Type Radius Base Glass Clamp is designed for secure mounting of glass panels in railing systems, partitions, mezzanines, and windbreak applications. Ideal for both interior and exterior use, this clamp provides a strong and reliable hold while maintaining a clean, modern appearance.

Sold by: Each
Finish/Color: Stainless Steel (GC-271SS) / Powder-Coated Zinc (GC-271PS)
Product Type: Glass Clamp
Application: Railings, Partitions, Mezzanines, Windbreaks
Function: Secures Glass Panels to Tubing
Material: Stainless Steel or Zinc
Profile: Square
Base Type: Radius (For 2" Round Tubing)
Glass Thickness Compatibility: 1/4 in. to 5/16 in. (6 mm to 8 mm)
Height: 2-1/4 in. (57 mm)
Width: 2-1/8 in. (54 mm)
Depth: 15/16 in. (24 mm)
Includes: Rubber Gaskets, Steel Pin with Grommet (Optional Use)
Installation Notes:

  • Drill 17/32 in. (13.5 mm) hole for Rivet-Nut installation
  • 1/2 in. (12 mm) hole required if using steel pin for added support
    Features: Corrosion Resistant, Heavy-Duty Construction, Optional Pin Support
    Manufacturer Part Numbers: GC-271SS, GC-271PS

Constructed from high-quality stainless steel or powder-coated zinc, this clamp offers excellent durability and corrosion resistance. The square profile with a radius base is specifically designed for use on 2" diameter round tubing, ensuring a precise fit. Compatible with 1/4" to 5/16" (6 to 8 mm) monolithic tempered glass, it includes rubber gaskets for a secure grip and optional steel pin support for added stability.

Engineered for versatility and strength, this clamp is suitable for a wide range of architectural and commercial glass installations.
